At the control
2D workpiece and tool graphics listed; confirm the actual installed software revision.
ESA bending systems · Brochure guide

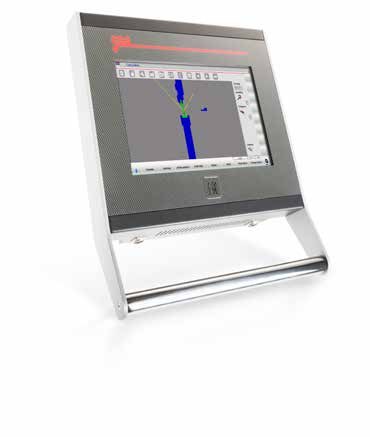

ESA S650 press brake control
A compact graphical control with a broader programming feature set. The brochure lists both 2D and 3D optimization for this model.
Specifications, without the guesswork.
| Display | 15.6 inches · 1366 × 768 |
|---|---|
| Brochure axis specification | 4; up to 8 optional |
| Digital I/O | 32 inputs + 32 outputs |
| 2D optimizer | Listed |
| 3D optimizer | Listed |
| BENDRYX status | Application review required |
Programming and integration
Before choosing axes
Count ram, backgauge and accessory channels separately. A six-axis backgauge does not mean a six-axis machine in total.
Understand rack and I/O selection →Offline is a separate choice
Confirm licenses and machine postprocessor compatibility before moving programming to the office.
Explore EsaBend 3D-M →Compare before you specify
Compare all ten ESA controllers → · Compare Delem alternatives →
ESA manufacturer reference, not a guarantee of the equipment installed on any individual BENDRYX machine. The quotation determines rack, axis count, software licenses and accessories. ESA S840 W is our standard platform; other models and systems require application and availability confirmation.
Images and specification reference: ESA VIS-600/800 bending brochure (2024), printed pages 10–21. Manufacturer illustrations retain their original appearance. Published brochure values should be reconfirmed against the current supplied configuration.
