Separate screen and motion
The W-series uses a PC-and-rack architecture. The brochure also shows S550N and S510 rack references; rack selection depends on drive and axis architecture.
ESA bending systems · Brochure guide

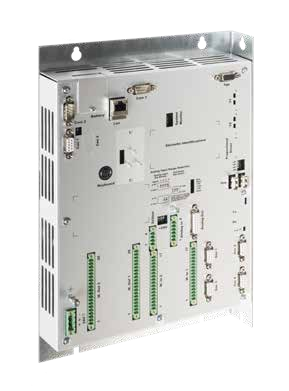

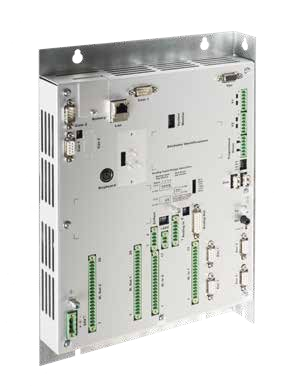

CNC racks and expansion
A display is only one part of a CNC system. The rack, I/O, fieldbus and software must be selected together for the actual press brake.
Match the electronics to the axes.
Connect the machine
CANopen, EtherCAT and I/O expansion support different integration requirements. Available interfaces are not a promise that every port or module is installed.
Count every controlled axis
Y1/Y2 ram axes and the X, R and Z gauging axes are separate channels. Share the exact backgauge layout, crowning and accessory requirements for an engineering review.
